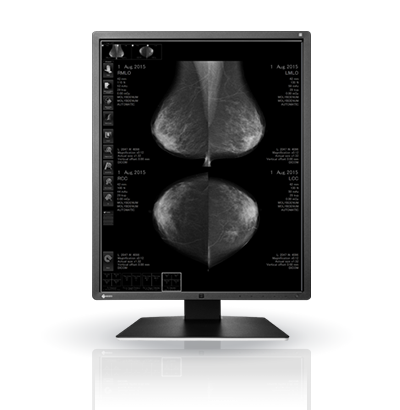

EIZO GX550
21.3" | 5 Megapixels| Monochrome IPS
The high resolution and multiple grayscale support of this 5 megapixel monochrome monitor make it ideal for displaying digital mammography images. The exceptional image quality combined with the thin bezel design provides both precision and comfort when working with breast images.
Screen Size
21.3"
Resolution
2048 x 2560
Brightness
2000 cd/m²
Contrast Ratio
1500:1
Ingress Protection
IP20
Warranty
5 Years
Brochures & Downloads
Optimum Breast Screening Monitor
The monitor has obtained FDA 510(k) clearance by the U.S. Food and Drug Administration for breast tomosynthesis and mammography. This ensures that the monitor is capable of displaying detailed breast screening images where high performance is essential.
Achieve Clarity True to the Source Data
A medical monitor needs to be capable of high brightness in order to meet performance standards. However, in order to achieve high brightness in an LCD panel, the pixel aperture ratio has to be increased. This causes a typically unavoidable decline in sharpness. With EIZO's unique Sharpness Recovery technology, the decrease in sharpness (MTF) is restored. This allows you to display an image safely on the monitor that is true to the original source data, even at high brightness levels.
MTF measures numerically how faithfully the panel transfers detail from the original image data for viewing. When Sharpness Recovery is turned on, in the case of a 2 pixel line pair (spatial frequency of 1.515 cycles/mm) the MTF increases by approximately 52%.
Create the Ideal Environment
The black front bezels are ideal for viewing the screen in dark reading rooms, making it easier to focus on images, while the original white stripe around the sides of the monitor presents a fresh, clean aesthetic.
Save Work Space with Sleek Cabinet Design
The monitor's width, height, and depth were reduced by 21 mm, 36 mm, and 45.5 mm respectively – 28% less space than its predecessor, saving more workspace for other tasks. The width of the side bezels were reduced by approximately half to 13.5 mm – the thinnest in the industry for 5 megapixel monitors. This allows users to comfortably view two monitors side by side to compare images.
Save on Power Consumption
The monitor uses a new panel equipped with an energy-efficient LED backlight which reduces power consumption by 17% compared to its predecessor.
EIZO's internal measurement under GX550's recommended brightness of 600 cd/m2.
Hassle-Free Multi-Monitor Configuration
Using the DisplayPort connection, you can drive several monitors in a daisy chain sequence. This allows you to configure a multi-monitor setup without the complicated hassle of excessive cabling.
Variations for Specific User Needs
EIZO offers anti-glare (AG) and anti-reflection (AR) screen variations
to suit user environments. AG treatment is ideal for exceptionally
bright environments and drastically reduces glare from ambient lighting.
AR treatment is ideal for moderately-lit environments to reduce mild
screen glare while maintaining crisp text and images.
View Mammography Images Clearly
5 megapixel monitors allow you to see smaller details that are essential in digital mammography. The high resolution retains important information to prevent decreased image quality and pixelation that occur when viewing at a lower resolution.
Clearly Distinguish Microcalcifications
To detect the smallest structures, the monitor offers a high contrast ratio to accurately render the finer details. The deeper black levels distinguish similar shades of gray for clearly identifying spicules and microcalcifications in monochrome images.
10-Bit Simultaneous Grayscale Display
10-bit (1,024 tones) simultaneous grayscale display extends grayscale fidelity to the boundaries of human visual perception abilities and helps radiologists discern the finest nuances within an image.
A 10-bit graphics board and 10-bit viewer software are needed for 10-bit display.
A 10-bit graphics board and 10-bit viewer software are needed for 10-bit display.
